OpenGL 3D Renderer
A simple 3D graphics renderer which showcases a number of graphics techniques and features, including:
Forward Rendering
Deferred Rendering/Lighting
Tessellation
Forward Rendering
Loads in an OBJ model and performs lighting calculations using the forward rendering path.
5 point lights positioned at each candle, and the cauldron in the center, to give the environment more ambiance

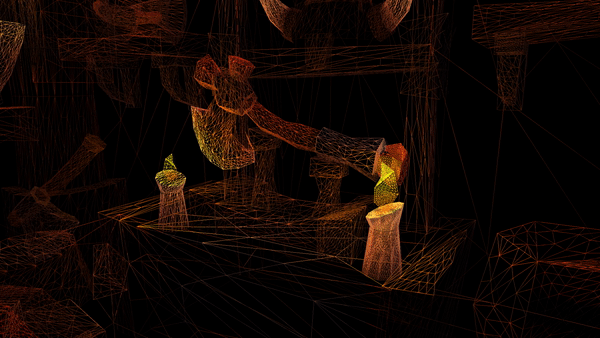

Wireframe mode can be toggled on and off, which helps showcase tessellation.
Tessellation is performed based on camera distance. The camera’s position is provided to the tessellation control shader, where it is then tested against the vertices’ positions. The tessellation level is then turned up or down, depending on how far the camera is.
Deferred Rendering
Deferred rendering is a multi-render pass technique which uses a set of render targets called a G-Buffer, and delays lighting calculations until the final image has been rendered.
We create an offscreen framebuffer object with multiple color attachments and a depth attachment for the G-buffer. In the first pass, we render the scene without any lighting and store the object’s vertex positions, normals, and albedo texture in different attachments.
Now that we know what the final scene looks like, with all of the geometry now in place, we can do our lighting calculations in a second pass on the finalized scene. This prevents us from doing any extra calculations on parts of the scene that may otherwise be covered by different geometry. This is also helpful for areas with lots of geometry, as performing lighting calculations are expensive on performance, so we minimize what we decide to do lighting on.
Albedo Texture - Simple brick texture
Positions - 3D positions can also be used to represent color, with the x-axis representing the red channel, the y-axis the green channel, and the z-axis the blue channel. Keep in mind that the positive z-axis points out of the screen towards you, and the negative z-axis into the screen away from you.

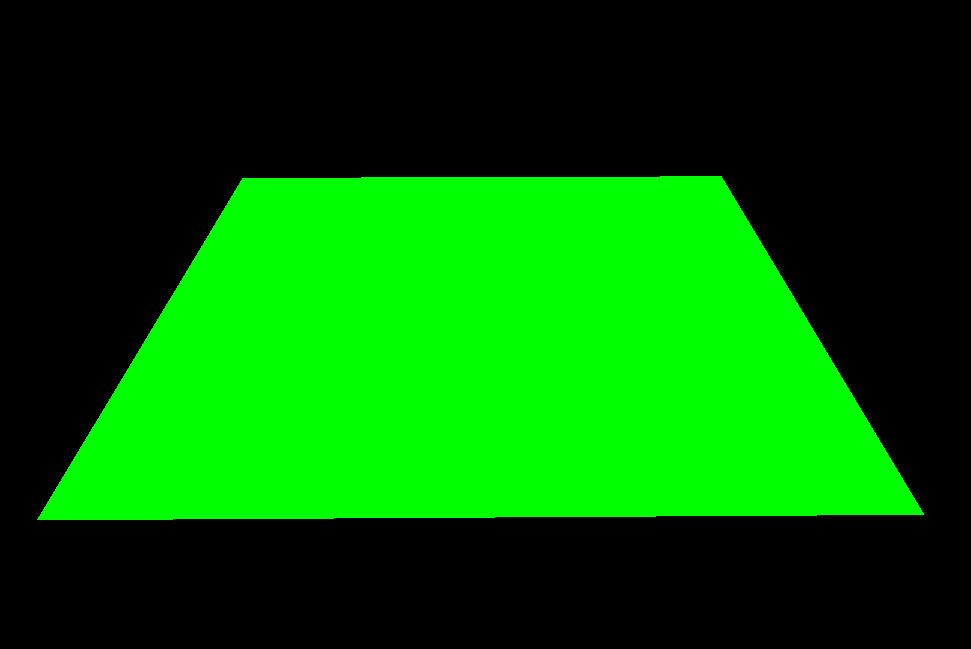

Normals - Since it's a plane, the normal vector is simply the positive y-axis, which is why it's green.
Composite - With all of the other information stored, we can perform our lighting calculations. The point lights colors are randomized every time the program is run.
